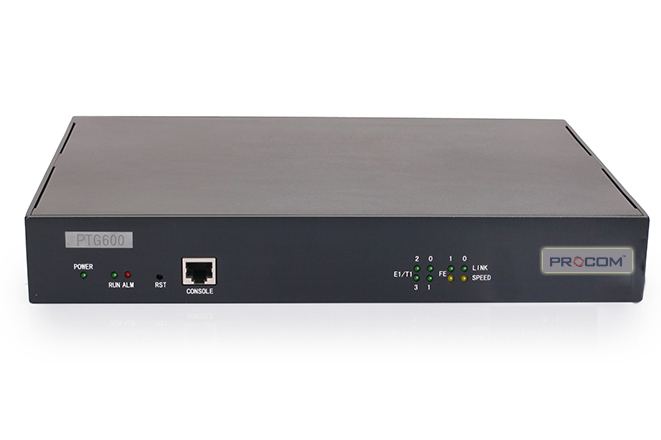

PAG6024N

PROCOM Communication developed and launched PG600X series to meet the PGN requirement of Telecom carrier, service provider and SMB and home users, which including IP Phone, VOIP gateways, Trunking Gateway and NMS, to provide perfect VoIP/FoIP solution. Such series widely support all kinds of procom and services, performances high-efficiency, safe, high quality voice service. PG 6000 series VoIP gateways include 2/4/8/16/24/32 FXS port VoIP gateways, provide flexible, convenient, aboundant voice and wideband data service

• Voice Capacity & Feature
• SPECIFITION
• Application

• The strong performance of hardware platform, energy efficiency concurrent processing

• Service oriented architecture, rich services, in addition to support voice and IP fax outside, still can be expanded to fax server

• Flexible dial-up rules and operation, in order to adapt to the different work scene.

• Voice codec: G.711A/U,G.723.1,G.729A/B, iLBC

• Good compatibility, support Asterisk, Elastix, Freeswitch and Small and medium IPP

Physical Interfaces

•ISDNInterface 1/2*E1/T1, G.703, 120ΩRJ-48c

•Network InterfaceWAN and LAN, 2 * 10/100M Base-TX, RJ-45

•RS232 ConsoleRJ-45, 115200bps

Voice & Fax

•G.711A/U law (G.723.1, G.729A/B, iLBC–optional)

•Silence Suppression & Detection

•Comfort Noise Generation (CNG)

•Voice Activity Detection (VAD)

•Echo Cancellation (G.168)

•Adaptive (Dynamic) Jitter Buffer

•Call Progress Tone Generation

•Programmable Gain Control

•T.38/Pass-through

•DTMF Mode: Signal/RFC2833/Inband

Physical Feature

•Power: input:100-240V,50-60Hz output:12VDC,1.0A

•Temperature(operation): 0 ℃~ 45 ℃

•(storage): -20 ℃~80 ℃

•Operation Humidity: 10%-90% no condensation

•Dimension(w/D/H): 225*150*38mm

•Weight: 0.75kg

Protocol

•SIP-RFC3261,3262,3263,3264,

•SDP-RFC 2327

•RTP/RTCP-RFC2198,1889

•Network Protocol

IP,TCP, UDP,TFTP, FTP, RTP, RTCP,

ARP/RARP,ICMP Ping, NTP, SNTP, Http, DNS

Signal

•PRI/PRAISDN E1/T1,JapanT1.ITU-T I.431, Q.921, Q.931, ETSIQ.sig

•R2China and other 22 variants

Maintain & Upgrade

•Web based configuration

•Data backup/restore

•Support English and Chinese

•Firmware upgrade by TFTP/web

•Web & Telnet login password modify

•Factory reset

•Output CDR/Tracking newsby syslog

•Call status information statistics

Certifications

• CE,FCC
